In October 2023, Superior Navigation deployed its micro-autonomous underwater automobile (AUV) Hydrus off Rottnest Island, Western Australia. The aim of the mission was to seize high-quality nonetheless imagery and 4K video, for the needs of benthic inspection and 3D photogrammetry reconstruction.
The retrieved datasets spotlight a number of notable options of Hydrus together with the power to function in dynamic currents, navigate complicated terrain, and produce extremely high-resolution knowledge deliverables.
Upon location, the vessel recorded a floor present of over 1.5 knots, with substantial wave motion and 18 knots of wind. Hydrus was deployed from the vessel and tracked with Superior Navigation’s acoustic positioning system, Subsonus. As soon as underwater, the automobile descended to an working depth of round 25m, with an altitude of 1m.
Intuitive Mission Planner
To seize prime quality nonetheless photos, with embedded georeferencing, Hydrus had a mission deliberate to seize photos with 80% ahead overlap and 60% lateral overlap. Because of the low altitude and excessive decision required, Hydrus flew the mission at a gradual pace, taking pictures video at 4K 30FPS, to cut back movement blur. As soon as on the mission web site, Hydrus was capable of run a ‘lawnmower’ sample as deliberate.
Capturing Sea Kelp Throughout Advanced Seabed
Basic methods to seize imagery in seabeds with swirling, dynamic currents can usually show troublesome. Right here, divers usually battle to keep up fixed positioning and distant operated automobiles (ROVs) can endure from drag attributable to their tethers.
In distinction, Hydrus is ready to utilise its doppler velocity log (DVL) to trace its place over the seabed and use its excessive degree of management authority from the distinctive seven thruster configuration to keep up fixed strains – regardless of swirling, dynamic currents. That is evident within the motion of the kelp within the video under.
Sustaining Set Altitude over Troublesome Reef Terrain
Though the terrain of the seabed on this particular spot was complicated to navigate, Hydrus was capable of meet the problem and keep a set altitude of 1m during the mission. To realize this feat, Hydrus measures the DVL beams and manoeuvres to carry the preset altitude. Equally, this method doubles as Hydrus’ impediment avoidance system, i.e., when objects are acoustically detected in its path, Hydrus will transfer excessive of them to keep up its set altitude.
Within the clip under, Hydrus performs knowledge seize within the camera-down orientation over a posh reef system.
Exact Picture Georeferencing
Following the profitable knowledge seize, Hydrus was recovered to the boat, and the information was downloaded utilizing WiFi. Preliminary knowledge high quality management was then carried out to evaluate picture high quality and georeferencing.
Creating 3D Fashions of Reconstructed Seabed
The ultimate knowledge processing was carried out in Agisoft Metashape, the place a 3D mesh was reconstructed utilizing Construction from Movement (SfM) photogrammetry.
The reconstructed seabed, with draped imagery, and underlying bathymetric digital elevation mannequin are proven under.

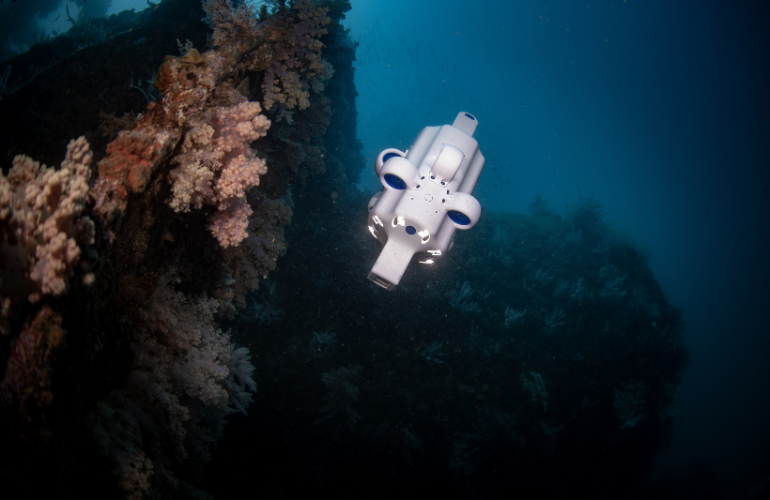

Hydrus
Hydrus takes the drone revolution underwater with probably the most superior sonar, navigation and communications programs of any subsea automobile. It incorporates a DVL, USBL, INS, acoustic and optical
modems, all tightly built-in. This allows extremely dependable, totally autonomous underwater missions at your fingertips. It additionally gives impediment detection and collision avoidance.
